Industrial Scale Hardware
THE WEIGHT DISPLAY
- Avery Weigh-Tronix ZM405 series instrument
- NTEP approved and legal for trade
- Rugged LEXAN keypad NSF approved
- Stores and tracks over 500 pickers in SQLite database
- Picker display shows weight on the scale and scanned picker ID number
- tracks and reports harvest data per field, variety, pallet and employee payroll data
THE SCALE BASE
- Avery Weigh-Tronix BSG Torsion Bench Scale Base
- 100lb capacity
- Stainless steel and IP66 sealed
- NSF and NTEP approved legal for trade
- 12” x 14” (310mm x 350mm) platter dimensions
THE CASE
- PELICAN brand case manufactured in the U.S.A.
- Rotationally molded durable polyethylene
- Removable top lid with cam lock latches for a watertight seal
- Exterior dimensions: 29.25” W x 20.25” L x 11.81” H
Input and Output Device
THE SCANNING TECHNOLOGY
- 2D Zebra DS457 fixed mount scanner (standard)
- 2D Zebra DS3678-SR Bluetooth handheld with charging cradle (available as an upgrade)
- Dual magnet mount locations to easily adjust the scanning angle
- Imaging based scanning technology is designed for use in direct sunlight
- Durable double-sided plastic badges with error checking Datamatrix barcode symbology

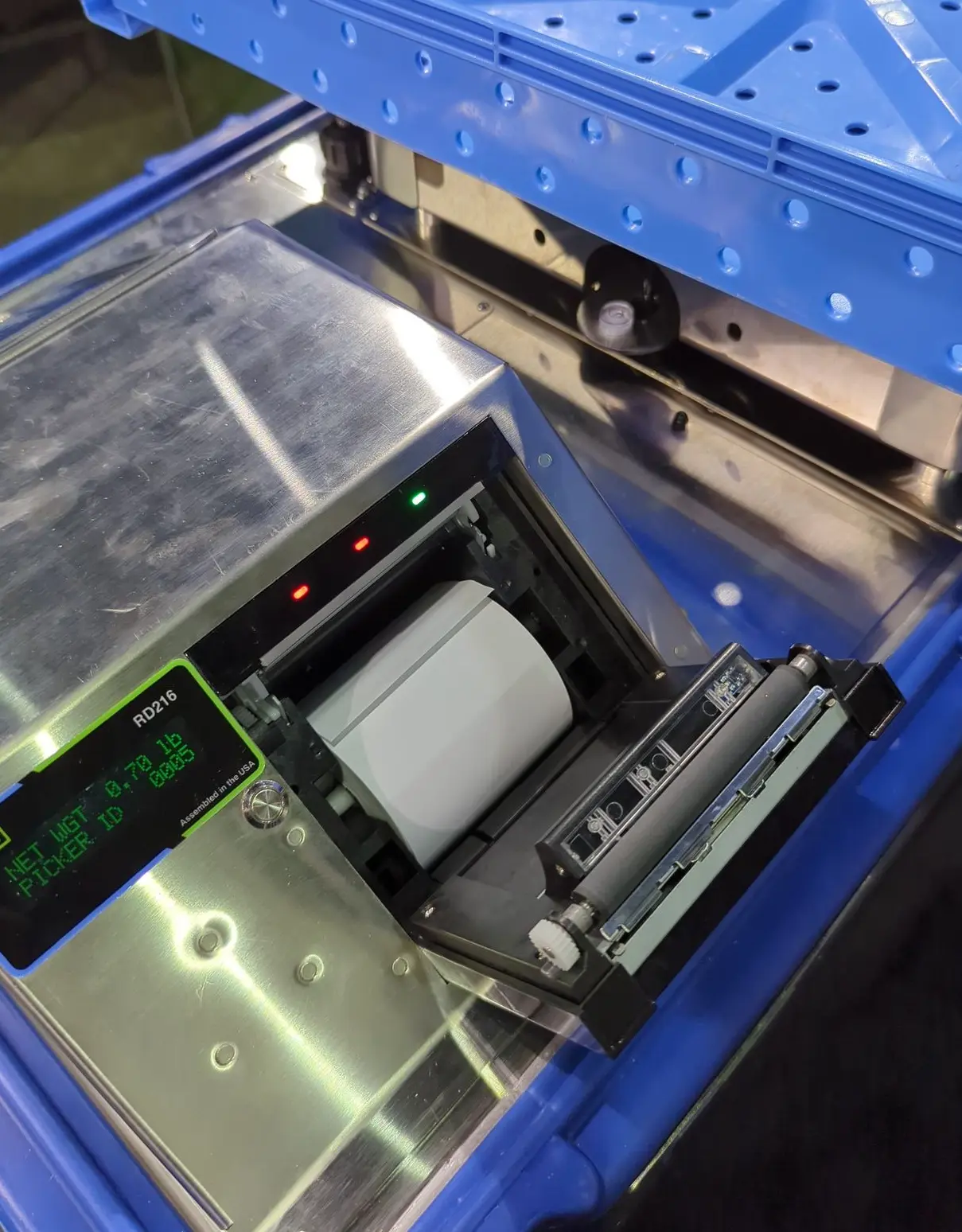

INTEGRATED TICKET PRINTER
- Available with Thermal Printer or EPSON TMU-220 impact dot matrix
- Auto winding reel rolls the yellow copy after printing on impact printer
CELLULAR ROUTER RECOMMENDED UPGRADE
- Live synchronization of scale data to the cloud
- Verizon 4G LTE data connection module
- Plug and play installation with low annual costs
- Remotely monitor your harvest in real-time from anywhere in the world
Reports
REPORTS IN THE FIELD DIRECTLY FROM THE SCALE
- Instant data reports generated from the scale in the field when a control badge is scanned
- Total weight, number of pickers
- Weight sorted by variety or field
- Single picker transaction detail with summary
- Leader Board & Looser Board reports
- End of day picker duration, weight, and average lb per hour
